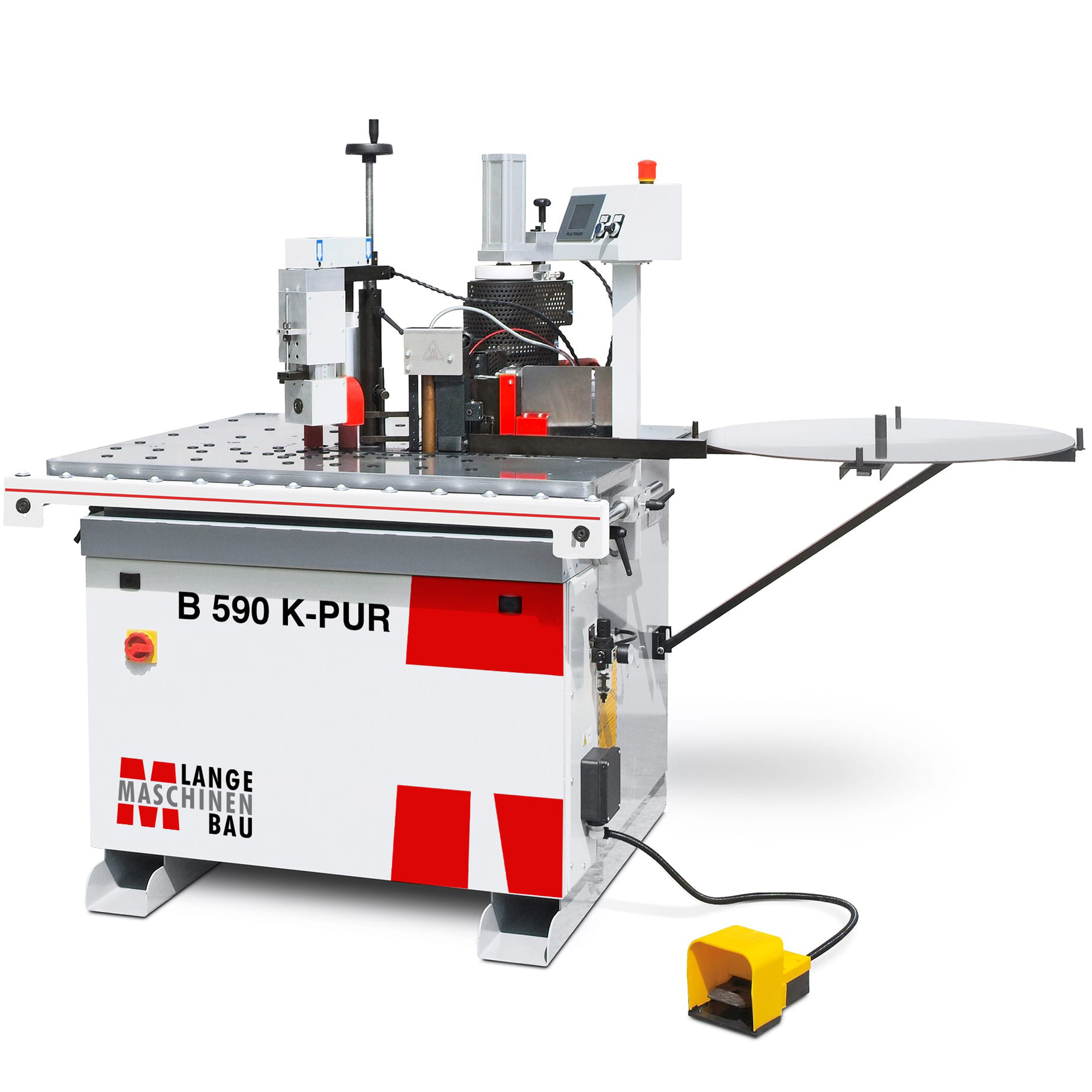

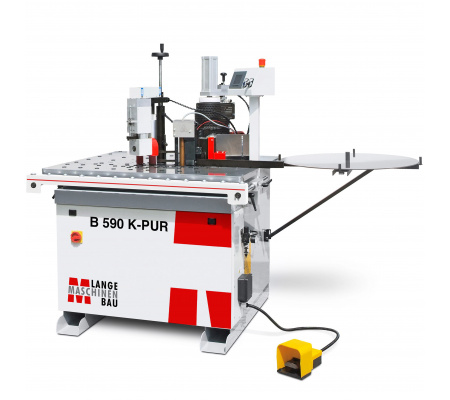

Συγκολλητική περιθωρίων καμπύλων επιφανειών Lange Β590Κ-PUR Κωδικός προϊόντος: Lange_B590K-PUR


Χαρακτηριστικά

Κατόπιν Παραγγελίας
Lange

ΣΥΝΟΠΤΙΚΑ

Συγκολλητική περιθωρίων καμπύλων επιφανειών LANGE mod. B 590 K για εφαρμογή θερμόκολλας EVA καθώς και κόλλας πολυουρεθάνης PUR.

Συγκολλητική μηχανή του Γερμανικού εργοστασίου LANGE Maschinenbau, στιβαρής κατασκευής, σχεδιασμένη για ικανοποιήσει με τον καλύτερο τρόπο τις σύγχρονες απαιτήσεις στον τομέα συγκόλλησης περιθωρίων PVC/ABS/Ξύλου και στο χώρο της κατασκευής επίπλων. Συγκόλληση σε ευθεία, καμπύλα και ακανόνιστα κομμάτια με εσωτερική και εξωτερική ακτίνα.

Πάχος κομματιών έως 140χιλ, σύστημα προθέρμανσης κόλλας για χρήση κόλλας EVA και PUR, ταχύτητα από 2,5 -12 μέτρα ανά λεπτό, καζάνι κολλάς με σύστημα "Quick change", επικάλυψη καζανιού και ράουλου επάλειψης κόλλας με τεφλόν, λειτουργία "Standby",  μέγιστη διατομή κοπής 615 τετρ.χιλ., επικλινόμενο τραπέζι έωα 45° και ψηφιακός μετρητής.

ΕΞΟΠΛΙΣΜΟΣ

High-rigidity, electrically welded machine frame
The machine has a compact design, is versatile and user friendly
Suction with Ø 80 mm connector
The machine features a new, patented worktable which grants smooth panel
sliding and extremely flexible edging without using jigs
Sliding on nylon blocks grants flawlessness and perfect cleaning of the panel
melamine surfaces
Cardan-shaft transmission directly connected to the glue spreading roller,
protected by a torque limiter
Adjustable side and upper edging guides
Adjustable edging guide on the gluing roller
Revolving roll edging holder Ø 500 mm
Built-in electrical cabinet with main switch
The control panel is placed in a very convenient and functional position,
together with machine start and control pushbuttons
Machine control is granted by a 3,5″ colour touch screen PLC placed in a very
convenient and functional position; all functions such as program change,
temperature variation, working speed and unit enabling are easily accessible
The B590K-PUR is designed for edge banding of straight panels with straight
profile, for concave and convex curves with minimum concave curve radius 20
mm
Edge shearing system up to 3 mm with electronic millimetre counter
(encoder), with three working options, manual for workpieces with different
dimensions, automatic or automatic with self-learning function (patent) for
large-sized workpieces
Slow-down areas can be pre-set by a simple pressing of the supplied pedal, to
help the operator during gluing on critical areas (curves), thus obtaining a
better gluing
New design gluing unit with forefront technical features
Glue tank capacity 2 kg with original Dupont® complete Tefloncoating
granting the best working conditions both with PU glues or EVA hot melt
glues
Integrated programmable stand-by function to control automatic
temperature reduction after a non-use period, stops glue spreading roller
revolving and reduces power consumption whilst preserving glue technical
features
Installed power is 2,4 kW, equipped with quick release system for easy
maintenance, heated glue roller with dedicated temperature control and long
life system (patent pending) in order to reduce extraordinary glue tank
maintenance to the minimum
ELECTRONIC MILLIMETRE COUNTER WITH INVERTER: For the automatic
control of the PVC shear unit, allows setting of the requested edge length by
means of a PLC equipped with bi-directional encoder. In case of edging of
particularly difficult parts with concave and convex curves, the operator can
use the self-learning function in order to slow down edging speed on the
most critical points. By means of a pedal, the operator can save up to 15
slowdown areas. After the first panel has been finished, when machining all
the next panels with the same shape, the machine automatically slows down
in the pre-set areas, thus improving product quality and operator working
conditions.
3 MM SHEAR: For roll edging shearing up to 3 mm thickness, equipped with
fixed coil holder Ø 800 mm. MAXIMUM CUTTING SECTION with standard
configuration: 435 mm²; MAXIMUM CUTTING SECTION with accessory no. 17:
H= 200: up to 615 mm².
0°÷45° TILTING WORK TABLES: Height adjustable, with anti-darkening
and antiwear treatment
COIL HOLDER Ø 800
EDGE GUIDE ON RUBBER ROLLER: Height adjustable upper edge guide on
rubber gluing roller
HEATED GLUE POT ROLLER: with heating element of adequate power,
electronic temperature control with 2nd thermostat
TEFLON COATED GLUE TANK: For easy glue tank cleaning and replacement
AUTOMATIC TEMPERATURE REDUCTION: Automatic temperature reduction
with pre-settable timer to reduce glue temperature during machine stand-by
PIN ROLLER: Loading device for PVC/ABS 3 mm edging (Ø 40 H 50 hole
Ø15)
GLUING ROLLER Ø20: To carry out edging with minimum radius R=10
ELECTROPNEUMATIC PRE-MELTING UNIT – patented: With grain glue 4 kg
tank with level sensor. It grants constant glue quantity and temperature both
in small and large consumption conditions. Ideal if combined with the double
spreading glue tank.
EXTERNAL LOADING SYSTEM FOR PRE-MELTING UNIT
SLIDING CARRIAGE: Sliding carriage to machine panels up to 3000 mm long.
Handling during machining and return of the machined panel to the
loading/unloading position
is automatic. Equipped with universal adjustable panel locking system to suit
to panel shape and length. Once the panel has been positioned, a pneumatic
system locks it and allows carrying out the subsequent machinings.
MOTORIZED DRIVING MECHANISM (patented): Feeding unit that allows
obtaining higher pressure of the panel against the gluing roller. Roller
motorization is transmitted by the gluing roller, so that synchronization
between the two rollers is maintained in case of machine speed variation,
thus avoiding any phase shift between the two rollers and loss of time. The
unit can be vertically and longitudinally adjusted,can be jointed in two points,
thus permitting head turning by 0° to 180° with respect to the gluing roller.
Pneumatic cylinder for unit raise and fall.
SUPPORTING BARS WITH STEEL BALLS: Height-adjustable steel bar with a
rangeof steel balls,can be fitted on the worktable to support large-sized
straight and curved panels.
WORK HEIGHT 200 MM: With glue tank, shear, edging guide and glue roller
height increase. H=200 mm

Χαρακτηριστικά

ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Συγκολλητική ΠεριθωρίωνLange B590 K - PUR
Ελάχιστο μήκος κομματιού

200 χιλ. περίπου

Ελάχιστο πλάτος κομματιού 30 χιλ. περίπου
Πάχος κομματιού 10 - 140 χιλ.
Πάχος περιθωρίου 0.4 - 3 (5) χιλ.
Τάση λειτουργίας 400V / 50HZ / 3Ph
Συνολική ισχύς 5,8 kw
Ταχύτητα προώθησης 2,5 - 12 μέτρα / λεπτό
Ύψος εργασίας 875 χιλ
Εσωτερική ακτίνα 20 χιλ
Χωρητικότητα καζανιού κόλλας 2 κιλά
Απαιτούμενος χώρος χωρίς το τραπέζι 1800 x 1000 x 1400 χιλ
Βάρος μηχανής 500 κιλά
